Merk: SOLH dening Richge Technology
Seri SOLH HFZ minangka gripper paralel kanthi kaku sing dilengkapi karo pandhuan linier roller / bal terpadu, didorong dening piston dual lan mekanisme sinkron rak & pinion. Bisa diijolake kanthi lengkap karo seri SMC MHZ2.
Telung varian operasi kasedhiya:
-- HFZ: Tipe standar tumindak ganda
-- HFSZ: Single acting normally closed (spring clamp, power-off holding)
-- HFTZ: Tunggal akting biasane mbukak (musim semi release, daya-mati mbukak) Cocog kanggo cahya umum & medium presisi clamping, perakitan otomatis lan robot end effector aplikasi.
1. Transmisi: Dual piston + rak & pinion drive sinkron. Loro rahang njaga gerakan paralel sing sampurna tanpa ngimbangi utawa defleksi.
2. Sistem Pandhuan: Roller terpadu / guide linear werni karo pin panggonan ing ngisor kanggo nyegah owah-owahan. Kaku banget, akurasi baleni dhuwur lan resistance kuwat kanggo ngimbangi beban.
3. Mode Operasi
-- HFZ Double Acting: Pasokan udara kanggo mbukak / nutup, produksi terus-terusan universal
-- HFSZ Single Acting NC: Pasokan udara mbukak rahang; spring clamps nalika online cut-off (power-off nyekeli benda kerja)
-- HFTZ Tunggal Akting NO: Pasokan udara nutup rahang; spring mbukak nalika udhara mateni (otomatis mateni)
4. Konstruksi: awak paduan aluminium, rahang stainless steel, cincin magnet sing dibangun. Dual-sisih ngalih Magnetik grooves; lumahing multi soyo tambah: ngisor / sisih / liwat-bolongan.
5. Akurasi Posisi: ± 0,01 mm (bore 6 ~ 25); ± 0,02 mm (bore 32 ~ 40), stabil ing siklus frekuensi dhuwur.

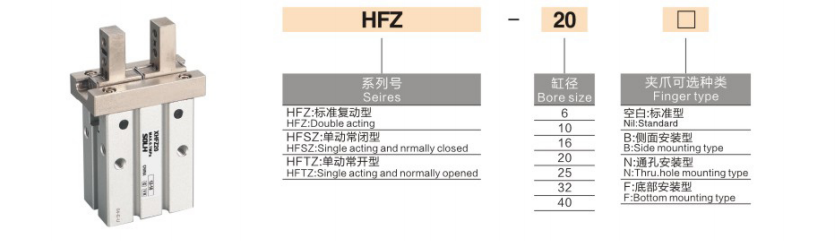

1. Tuladha Model:HFZ20N-M9BW
|
Segmen |
Kode |
definisi |
| HFZ / HFSZ / HFTZ |
Kode Seri |
HFZ=Double Acting / HFSZ=Single Acting Normally Closed / HFTZ=Single Acting Normally Open |
|
20 |
Ukuran Bor (mm) |
6,10,16,20,25,32,40 |
| N / B / Kosong |
Pilihan Pemasangan |
Kosong = Lubang ketup ngisor standar / N = Pemasangan bolongan liwat / B = Pasang ing sisih (khusus kanggo bolongan 6) |
| -M9B |
Ngalih Magnetik |
M9B (NPN) / M9N (PNP) / M9PSkabel standar 0,5m; W=1m; L=3m |
| Sufiks adat |
Upgrade opsional |
-X Extended rahang-J Debu-bukti tutup-G Suhu dhuwur segel tahan |
2. Referensi Urutan Standar
HFZ25N-M9BW Bore 25, dobel akting, liwat-bolongan gunung, M9B Magnetik switch karo 1m kabel.
|
Parameter Item |
Spesifikasi standar |
| Konfigurasi Jaw |
2 rahang, bukaan & tutup linear paralel murni |
| Mode operasi |
HFZ (Double Acting) / HFSZ (NC) / HFTZ (NO) |
| Tekanan Operasi |
Bore 6/10: 0.2~0.7MPa / Bore 16~40: 0.15~0.7MPa (Optimal:0.5MPa) |
| Tekanan Bukti |
1.0 MPa |
| Suhu sekitar |
-20 ~ +70 ℃ (ora ana icing ing njero pipa) |
| Baleni Akurasi Posisi |
Bore 6~25:±0.01 mm / Bore 32~40:±0.02 mm |
| Frekuensi Operasi Max |
cy Bore 6~16:180 cpm / Bore 20~40:60~120 cpm |
| Utas Port Udara |
Bore 6/10:M3×0.5 / Bore 16~40:M5×0.8 |
| Lubrication |
Operasi tanpa lenga; NSF-H1 food grade grease opsional |
| Instalasi Ngalih |
alur Muter Dual-sisih, kompatibel karo D-M9□, CMSH, seri DS1 |
| Pilihan Pemasangan |
Bolongan sing ditabuh ing ngisor, dipasang ing sisih, bolongan liwat (jinis N), mbenakake telung arah |
|
Lubang (mm) |
Model |
Stroke Rahang Tunggal (mm) |
Total bukaan (mm) |
Total bukaan (mm) |
Gaya Penjepit Dalam (N) |
Bobot Net (g) |
|
6 |
HFZ6 |
3 |
6 |
3.3 |
6.1 |
25 |
|
10 |
HFZ10 |
4 |
8 |
11 |
17 |
56 |
|
16 |
HFZ16 |
6 |
12 |
34 |
45 |
124 |
|
20 |
HFZ20 |
10 |
20 |
45 |
68 |
236 |
|
25 |
HFZ25 |
14 |
28 |
69 |
102 |
428 |
|
32 |
HFZ32 |
22 |
44 |
160 |
195 |
729 |
|
40 |
HFZ40 |
30 |
60 |
255 |
320 |
1268 |
⚠️ Cathetan Penting: Gaya clamping efektif suda nalika dawa ekstensi rahang L mundhak. Verifikasi beban kanthi faktor safety ≥1.5 wajib.
✅ Pilih seri HFZ yen:
-- Perlu panggantos langsung kanggo SMC MHZ2; mbutuhake siji tumindak daya-mati ditahan / fungsi release
-- Penjepit paralel presisi ringan & sedang: elektronik 3C, perangkat keras presisi, cetakan injeksi, peralatan pengemasan
- Kaku dhuwur lan resistensi beban offset sing dibutuhake kanggo efektor mburi robot & stasiun perakitan presisi
-- Fleksibel multi-arah soyo tambah: liwat-bolongan / sisih / ngisor instalasi kanggo mekanisme terpadu kompak
1.Pilih ukuran bore miturut bobot workpiece lan mode clamping (njaba / njero gripping), mesthekake clamping force ≥1.5 kaping beban nyata
2. Pilihan mode operasi
-- Power-off terus clamping → HFSZ biasane ditutup
-- Rilis otomatis mateni → HFTZ biasane mbukak
-- Produksi massal terus-terusan tanpa dikarepake spring safety → HFZ tumindak pindho
3. Pilihan pemasangan: Lubang tapped standar (kosong) / bolongan liwat (N) / dipasang ing sisih (B) supaya pas karo platform utawa krenjang
4. Deteksi posisi: Nglengkapi -M9□ saklar magnetik, slot sisih dual ndhukung 2 switch kanggo umpan balik sinyal mbukak & ditutup
5. Kontrol beban offset: Batesi dawa ekstensi rahang L, supaya ora ngluwihi momen lentur sing diidini saka pandhuan linier
SOLH HFZ linear guide parallel pneumatic gripper adopts roller/ball guide and rack-pinion synchronous drive, available in double acting HFZ, single acting NC HFSZ and NO HFTZ variant with multi-mount options and ± 0.01mm high precision, direct interchangeable with MHZ2, ideal high-rigidity C3, hardware, hardware assembly
