Merk: SOLH dening Richge Technology | SMC KQ2N Equivalent Stem Straight One-Touch Fitting
KQ2N minangka fitting pneumatik lurus gaya stem. Siji mburi thread lanang utawa gagang, mburi liyane nampa PU / PA tabung online. Iki minangka panggantos langsung kanggo fitting siji-tutul seri SMC KQ2N. Digunakake akeh ing sirkuit pneumatik lan pipa vakum. Instalasi tanpa alat, mung pencet krah release kanggo masang utawa mbusak tubing kanthi cepet.
Ana papat jinis struktural:

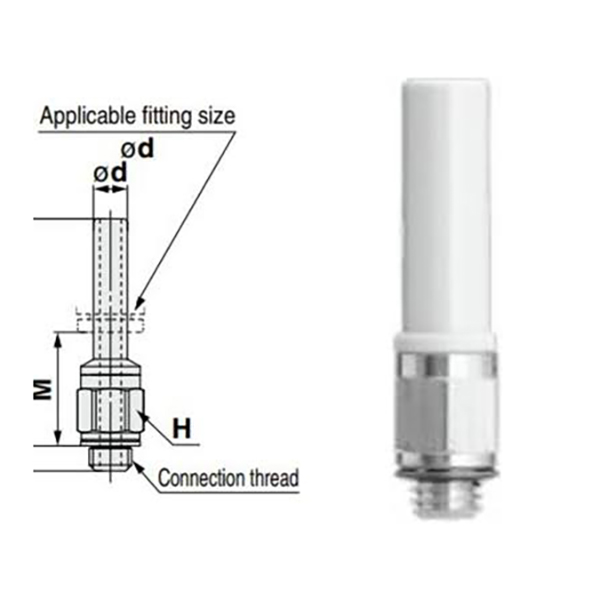

Tipe batang benang lanang (uang M: M5)

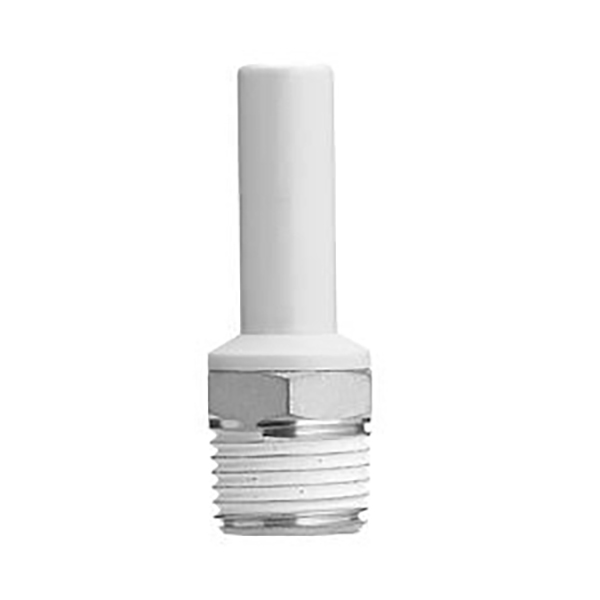

Tipe batang benang lanang (Unang R lancip Imperial: 1/8,1/4,3/8)

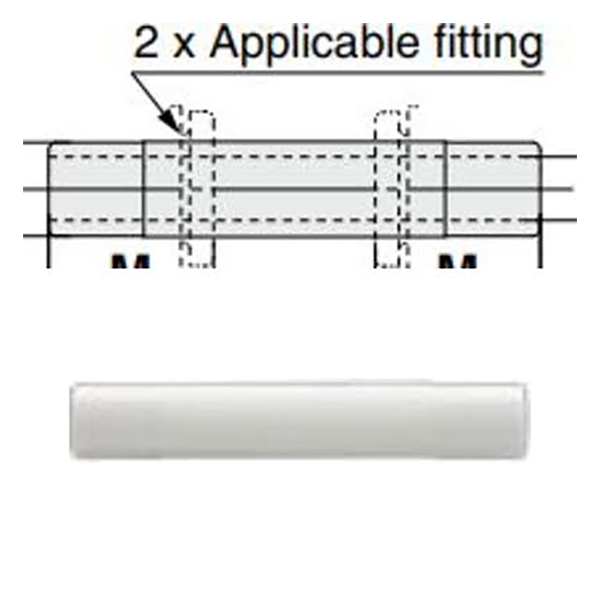

• Batang kanthi diameter padha lurus (-99 sufiks): ujung loro kanthi batang OD sing padha

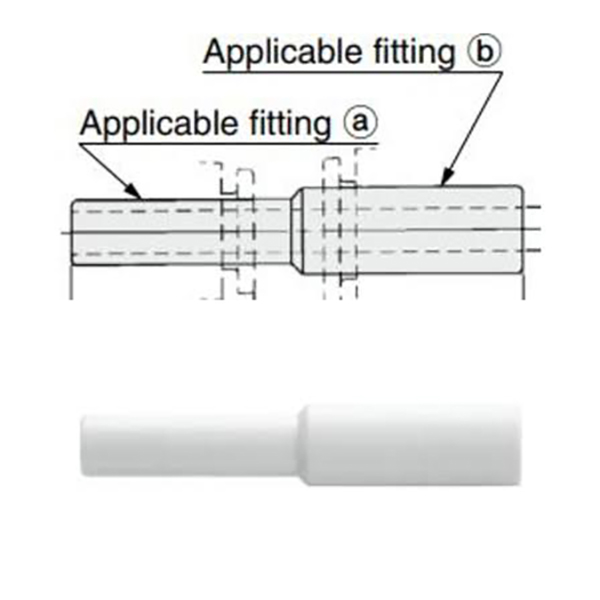

• Ngurangi batang pas lurus: loro batang kanthi diameter njaba sing beda kanggo transisi ukuran
Tuladha: KQ2N04-M5
• KQ2N: Kode seri, jinis batang pas lurus
• 04: Diameter njaba tabung Φ4mm ing sisih push-in
• M5 / 01S / 02S: Spesifikasi utas lanang
• -99: diameteripun witjaksono batang pas pas
• 04-06: Ngurangi pas batang, ①Φ4 → ②Φ6
|
Segmen Kode |
Katrangan |
|
KQ2N |
Kode seri: Stem type straight push-in fitting |
|
04/06/08/10/12/16 |
Diameter njaba tabung ΦD (mm) |
|
M5 |
Utas lanang metrik M5 × 0.8 |
|
01S/02S/03S |
Utas taper Imperial R: R1/8, R1/4, R3/8 |
|
-99 |
diameteripun witjaksono batang pas pas, loro ends padha OD |
|
Dwi digit e.g.04-06 |
Pengurangan batang pas: ① inlet OD, ② stopkontak OD |
|
Item |
Paramèter |
|
Tubing sing ditrapake |
PU polyurethane tabung, PA tabung nilon |
|
Tekanan Operasi |
0 ~ 1.0MPa, kompatibel karo sirkuit tekanan negatif vakum |
|
Suhu Operasi |
0 ℃ ~ +60 ℃ |
|
Bahan Badan |
awak plastik; Bagian berulir kuningan berlapis nikel, tahan korosi |
|
Kinerja Sealing |
Sealing benang sing apik banget |
|
Metode Sambungan |
Push-in; press release krah kanggo copot tabung |
4.1 Metrik M Male Utas Versi
|
Model |
Utas |
Tabung ΦD |
|
KQ2N04-M5 |
M5 × 0.8 |
Φ4 |
|
KQ2N06-M5 |
M5 × 0.8 |
Φ6 |
4.2 Imperial R Taper Male Thread Versi
|
Model |
Utas R |
Tabung ΦD |
|
KQ2N04-01S |
R1/8 |
Φ4 |
|
KQ2N06-01S |
R1/8 |
Φ6 |
|
KQ2N06-02S |
R1/4 |
Φ6 |
|
KQ2N08-02S |
R1/4 |
Φ8 |
|
KQ2N08-03S |
R3/8 |
Φ8 |
|
KQ2N10-03S |
R3/8 |
Φ10 |
4.3 Batang Diameter Sejajar (Seri-99)
|
Model |
ΦD |
|
KQ2N04-99 |
Φ4 |
|
KQ2N06-99 |
Φ6 |
|
KQ2N08-99 |
Φ8 |
|
KQ2N10-99 |
Φ10 |
|
KQ2N12-99 |
Φ12 |
|
KQ2N16-99 |
Φ16 |

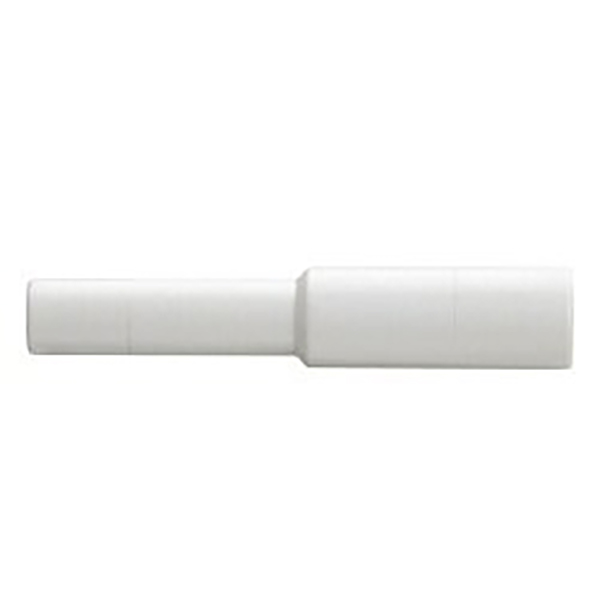

4.4 Ngurangi Stem Straight Fitting
|
Model |
① Batang OD |
② Batang OD |
|
KQ2N04-06 |
Φ4 |
Φ6 |
|
KQ2N06-08 |
Φ6 |
Φ8 |
|
KQ2N08-10 |
Φ8 |
Φ10 |
|
KQ2N10-12 |
Φ10 |
Φ12 |
|
KQ2N12-16 |
Φ12 |
Φ16 |
Badan plastik kanthi benang kuningan dilapisi nikel kanggo tahan karat lan segel benang sing dipercaya
• Kompatibel karo tabung udara poliuretan PU lan tabung nilon PA
Dirating tekanan kerja 0 ~ 1.0MPa, cocok kanggo sirkuit tekanan negatif vakum
• Kisaran suhu operasi: 0 ℃ ~ + 60 ℃
• Déwan prasaja: njaga ujung tabung lancar lan lebokake langsung; penet krah release ngarep kanggo narik metu tubing kanggo disassembly
Mesin otomatisasi, lengan robot, sistem adsorpsi vakum, perlengkapan pneumatik, pipa kompresor udara. Panggantos langsung kanggo fitting seri SMC KQ2N sing diimpor.
