KQ2W Series Extended Male Thread Push-in Siku

SOLH KQ2W seri 90° siku push-in benang lanang sing ditambahi, fitting pneumatik sing padha karo SMC KQ2W. Desain gagang lengkap ngatasi gangguan mekanik kanggo silinder & sirkuit vakum. Badan PBT + benang kuningan berlapis nikel, mendukung tabung PU/PA. Teknologi Richge kanthi stok stabil & produksi sing dipercaya kanggo proyek pipa pneumatik otomatis.

Kirim Pitakonan

Deskripsi Produk

SOLH KQ2W Series 90 ° Extended Male Thread Push-in Siku | SMC KQ2W Setara Pneumatic Fitting

Brand: SOLH dening Richge Technology | KQ2W Extended L-Type One-Touch Elbow

1. Ringkesan Produk

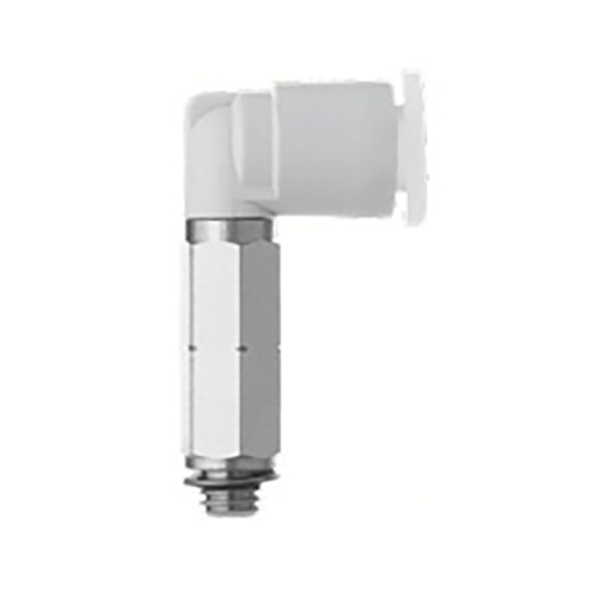

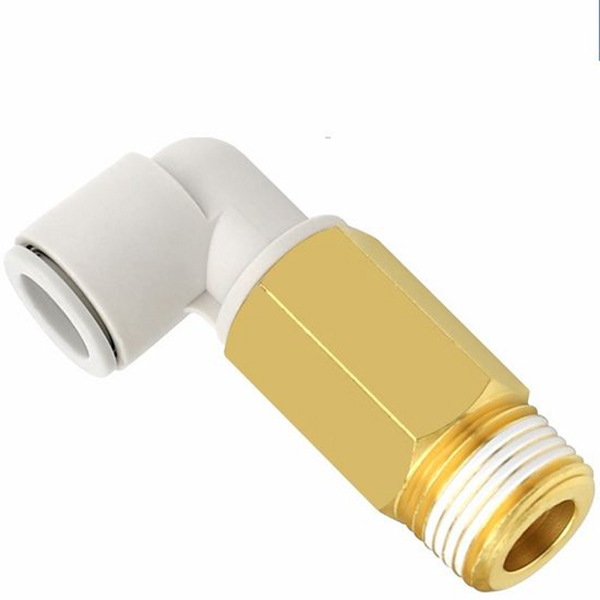

Seri KQ2W yaiku siku push-in stem lengkap L ing kulawarga fitting pneumatik SOLH KQ2. 90 ° konstruksi sudhut tengen. Utas lanang siji pungkasan (ulir taper R imperial / benang halus metrik M), ujung liyane kanggo selipan pipa pneumatik PU / PA. Seri uga kalebu non-ngurangi versi lengkap KQ2Wxx-99, loro ends kanggo sambungan tabung kanggo pipe lengthening lan panyegahan alangan.

Kaluwihan inti: Desain gagang lengkap ngatasi alangan papan instalasi lan gangguan mekanik. Struktur siji-tutul, selipan & mbusak tabung tanpa alat. Awak plastik + bagean Utas kuningan, anti-tuwa, kompatibel karo sirkuit pneumatik lan vakum. Pengganti impor langsung kanggo seri SMC KQ2W kanggo proyek luar negeri.

2. Katrangan Kode Model

Format: KQ2W □□ - □□S

KQ2W: Kode seri kanggo L-jinis siku lengkap

□□: Diameter njaba tabung ΦD (02=2mm,23=3.2mm,04=4mm,06=6mm,08=8mm,10=10mm,12=12mm,16=16mm)

Sufiks:01S02S/03S/04S: Utas lanang Imperial R (1/8",1/4",3/8",1/2")

M3GM5: Utas lanang metrik M3×0.5 / M5 × 0.8

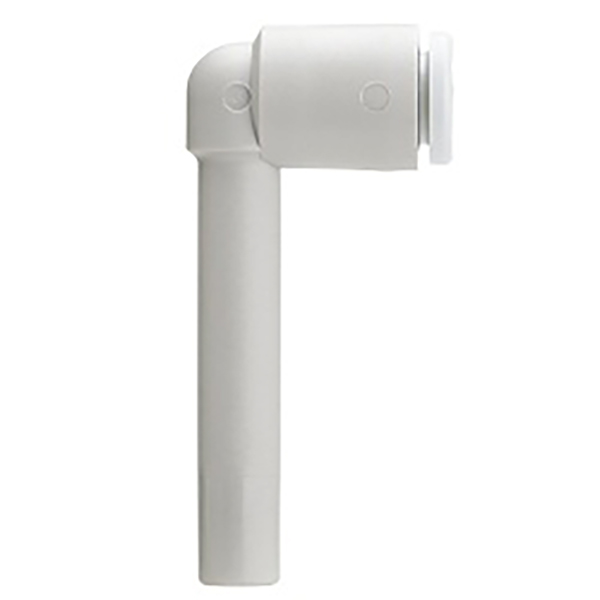

-99: Non-ngurangi versi lengkap, loro ends sambungan tabung padha-diameteripun, ora thread

3. Spesifikasi Teknis & Material Utama

Item	Paramèter
Bahan Badan	PBT engineering plastik, resistance impact dhuwur
Bagian Utas	Kuningan kanthi lapisan nikel kanggo nyegah karat
Bahan Segel	NBR karet nitril
Tubing Kompatibel	Tabung PU, tabung pneumatik nilon PA
Tekanan Kerja	0 ~ 1.0MPa, ditrapake kanggo vakum
Suhu operasi	-20 ℃ ~ +60 ℃
Metode Sambungan	Push-in; ring release penet kanggo masang utawa copot tabung

4. Daftar Model Lengkap

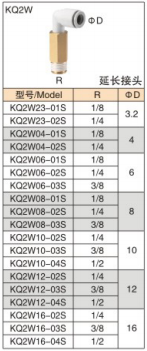

4.1 Imperial R Thread Versi (Kuningan Male Thread)

Model	Utas lanang R	Tabung ΦD
KQ2W23-01S	R1/8	3.2
KQ2W23-02S	R1/4	3.2
KQ2W04-01S	R1/8	4
KQ2W04-02S	R1/4	4
KQ2W06-01S	R1/8	6
KQ2W06-02S	R1/4	6
KQ2W06-03S	R3/8	6
KQ2W08-01S	R1/8	8
KQ2W08-02S	R1/4	8
KQ2W08-03S	R3/8	8
KQ2W10-02S	R1/4	10
KQ2W10-03S	R3/8	10
KQ2W10-04S	R1/2	10
KQ2W12-02S	R1/4	12
KQ2W12-03S	R3/8	12
KQ2W12-04S	R1/2	12
KQ2W16-02S	R1/4	16
KQ2W16-03S	R3/8	16
KQ2W16-04S	R1/2	16

4.2 Versi Utas Metrik M

Model	Utas lanang	Tabung ΦD
KQ2W02-M3G	M3 × 0,5	2
KQ2W02-M5	M5 × 0.8	2
KQ2W23-M3G	M3 × 0,5	3.2
KQ2W23-M5	M5 × 0.8	3.2
KQ2W04-M3G	M3 × 0,5	4
KQ2W04-M5	M5 × 0.8	4
KQ2W06-M5	M5 × 0.8	6

4.3 Non-Reducing Extended Version (Tube to Tube, No Thread)

Model	Pelabuhan 1 ΦD	Pelabuhan 2 ΦD
KQ2W23-99	3.2	3.2
KQ2W04-99	4	4
KQ2W06-99	6	6
KQ2W08-99	8	8
KQ2W10-99	10	10
KQ2W12-99	12	12

5. Skenario Aplikasi

• Ngindhari gangguan mekanik kanggo silinder, generator vakum lan katup solenoid; ngluwihi & pangalihan arah pipa

• 90 ° rute tabung lengkap kanggo sirkuit cangkir nyedhot vakum robot ing garis otomatisasi kompak

• Panggantos langsung kanggo SMC KQ2W asli, substitusi impor kanggo abang biaya

6. Cathetan panginstalan

• Cut tubing vertikal lan warata, kanthi masang menyang ngisor kanggo njamin sealing.

• tape PTFE bisa kebungkus ing Utas; aja ngencengi benang kanggo nyegah awak sing pas.

• Aman tabung: penet ring release putih lan tarik tabung metu bebarengan.
