KQ2T seri belongs kanggo SOLH lengkap KQ2 pneumatik siji-tutul kulawarga fitting, nampilaken alat-free plug-and-play desain cepet kanggo 3-cara lan 4-cara pipa udara ngepang. Lini produk iki kalebu T-jinis tee lan salib-jinis papat-cara fittings, kalebu witjaksono diameteripun, ngurangi, thread lanang (imperial / metrik) versi kanggo ketemu macem-macem pangalihan sirkuit pneumatik lan panjaluk sambungan pipa.
Klasifikasi sub-model:
KQ2T: T-tipe 3-port tee pas (diameter padha / reducing / jinis thread eksternal)
KQ2TW: Cross 4-way fitting (diameteripun padha kanggo kabeh port)
KQ2TX: Pemasangan 4 arah silang (spesifikasi pengurangan 1)
KQ2TY: Pas 4 arah silang (spesifikasi pengurangan 2)
Materi Inti & Kinerja: Badan plastik PBT berkekuatan tinggi, cakar penahan baja tahan karat, cincin segel karet nitril NBR. Kompatibel kanthi tabung pneumatik nilon PU lan PA, cocok kanggo tekanan negatif vakum lan sirkuit pneumatik tekanan positif udara sing dikompresi, digunakake ing peralatan otomatis lan sistem distribusi udara robot.

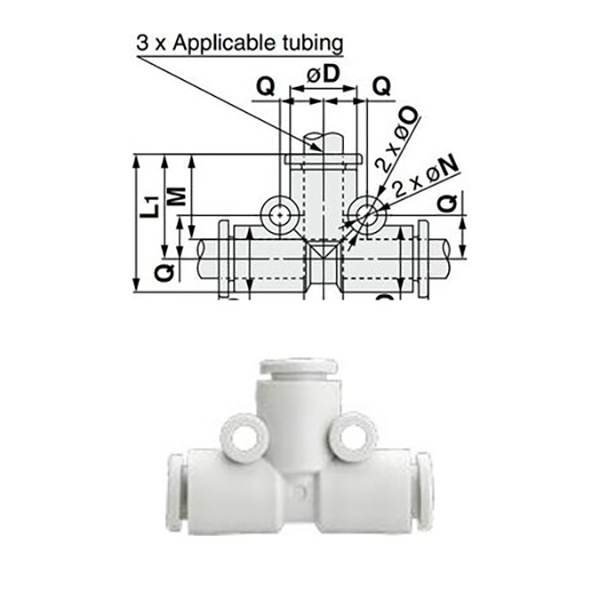

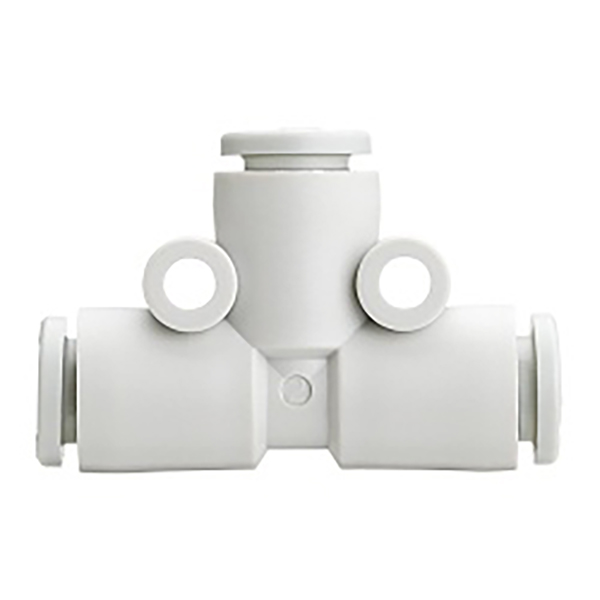

2.1 Tee Diameter Setara (KQ2T□□-00, Ukuran Sama 3 Arah Tanpa Utas)
Telung port nganggo diameter tabung sing padha, ora ana desain benang, khusus kanggo pangalihan udara sing padha karo pipa pneumatik sing padha.
|
Model |
Diameter njaba tabung ΦD (mm) |
|
KQ2T02-00 |
2 |
|
KQ2T23-00 |
3.2 |
|
KQ2T04-00 |
4 |
|
KQ2T06-00 |
6 |
|
KQ2T08-00 |
8 |
|
KQ2T10-00 |
10 |
|
KQ2T12-00 |
12 |
|
KQ2T16-00 |
16 |

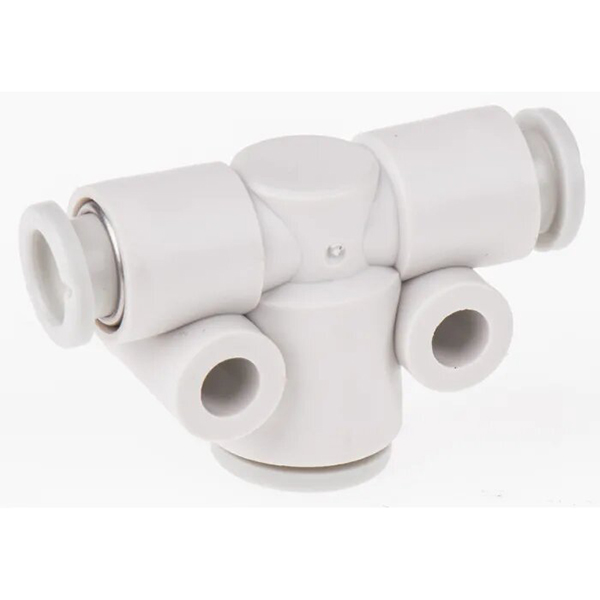

2.2 Reducing Tee (KQ2T①-②, Konversi Pipa Ukuran Ganda)
Loro-lorone bandar nganggo diameter ①, port ndhuwur tengah nganggo diameter ②, digunakake kanggo konversi pipa lan distribusi aliran tabung pneumatik kaliber sing beda.
|
Model |
Port sisih ΦD ① (mm) |
Port Tengah ΦD ② (mm) |
|
KQ2T23-04 |
3.2 |
4 |
|
KQ2T04-06 |
4 |
6 |
|
KQ2T06-08 |
6 |
8 |
|
KQ2T08-10 |
8 |
10 |
|
KQ2T10-12 |
10 |
12 |
|
KQ2T12-16 |
12 |
16 |

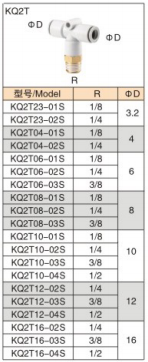

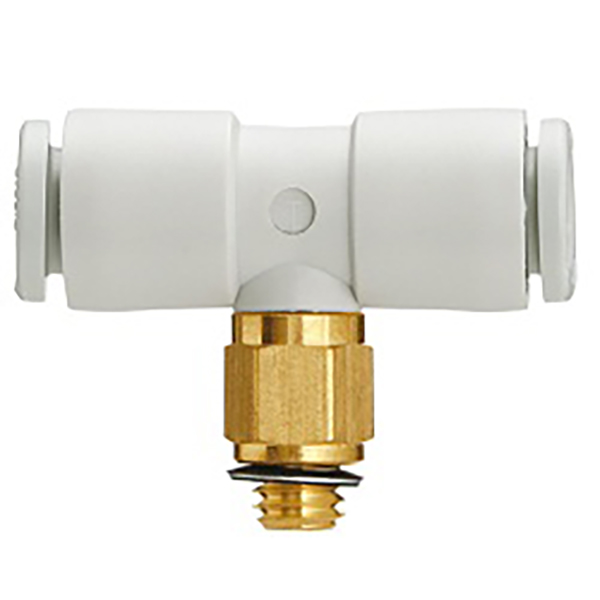

2.3 Imperial R Taper lanang Thread Tee
Loro-lorone port sisih kanggo selipan tabung, port tengah karo imperial R taper thread lanang kanggo sambungan Utas karo klep pneumatik, silinder lan komponen liyane.
|
Model |
R Thread Spesifikasi |
Diameter njaba tabung ΦD (mm) |
|
KQ2T23-01S |
R1/8 |
3.2 |
|
KQ2T23-02S |
R1/4 |
3.2 |
|
KQ2T04-01S |
R1/8 |
4 |
|
KQ2T04-02S |
R1/4 |
4 |
|
KQ2T06-01S |
R1/8 |
6 |
|
KQ2T06-02S |
R1/4 |
6 |
|
KQ2T06-03S |
R3/8 |
6 |
|
KQ2T08-01S |
R1/8 |
8 |
|
KQ2T08-02S |
R1/4 |
8 |
|
KQ2T08-03S |
R3/8 |
8 |
|
KQ2T10-01S |
R1/8 |
10 |
|
KQ2T10-02S |
R1/4 |
10 |
|
KQ2T10-03S |
R3/8 |
10 |
|
KQ2T10-04S |
R1/2 |
10 |
|
KQ2T12-02S |
R1/4 |
12 |
|
KQ2T12-03S |
R3/8 |
12 |
|
KQ2T12-04S |
R1/2 |
12 |
|
KQ2T16-02S |
R1/4 |
16 |
|
KQ2T16-03S |
R3/8 |
16 |
|
KQ2T16-04S |
R1/2 |
16 |

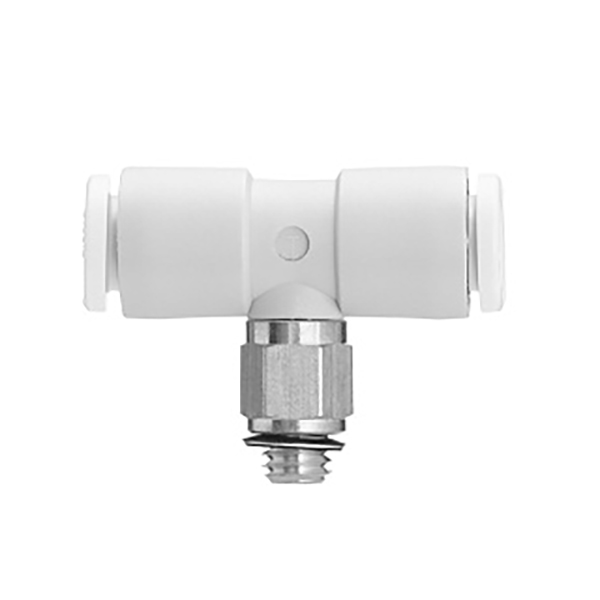

2.4 Metrik Benang Halus Kaos Pria
Loro-lorone port sisih kanggo selipan tabung, port tengah karo thread lanang metrik nggoleki, cocok kanggo komponen pneumatik miniatur lan tliti peralatan automation piping.
|
Model |
Spesifikasi Thread Metrik |
Diameter njaba tabung ΦD (mm) |
|
KQ2T02-M3G |
M3 × 0,5 |
2 |
|
KQ2T02-M5 |
M5 × 0.8 |
2 |
|
KQ2T23-M3G |
M3 × 0,5 |
3.2 |
|
KQ2T23-M5 |
M5 × 0.8 |
3.2 |
|
KQ2T04-M3G |
M3 × 0,5 |
4 |
|
KQ2T04-M5 |
M5 × 0.8 |
4 |
|
KQ2T04-M6 |
M6 × 1.0 |
4 |
|
KQ2T06-M5 |
M5 × 0.8 |
6 |
|
KQ2T06-M6 |
M6 × 1.0 |
6 |

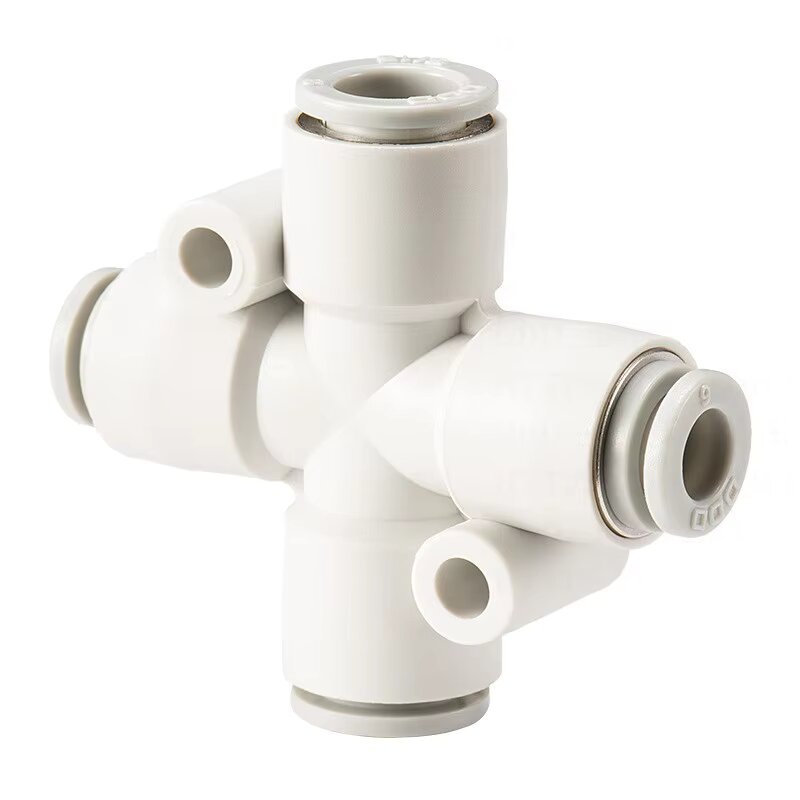

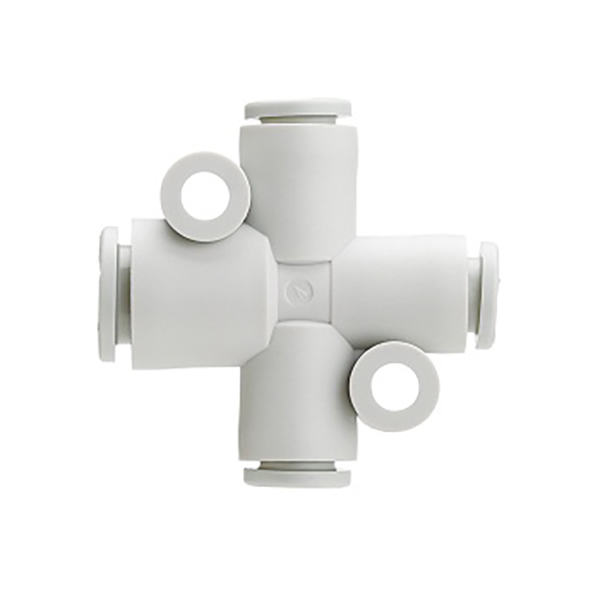

3.1 KQ2TW Fitting Salib Diameter Setara (4 Port Padha Ukuran)
|
Model |
Diameter njaba tabung ΦD (mm) |
|
KQ2TW04-00 |
4 |
|
KQ2TW06-00 |
6 |
|
KQ2TW08-00 |
8 |
|
KQ2TW10-00 |
10 |
|
KQ2TW12-00 |
12 |

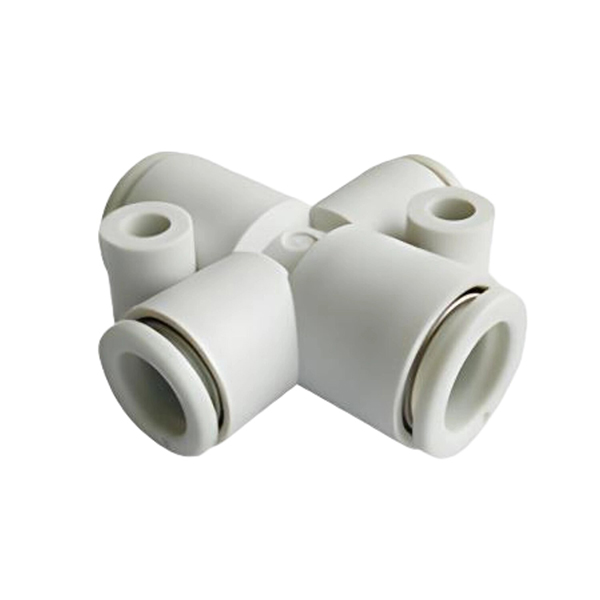

3.2 KQ2TX Reducing Cross Fitting (Tipe 1)
|
Model |
Port ΦD ① (mm) |
Port ΦD ② (mm) |
|
KQ2TX06-08 |
6 |
8 |
|
KQ2TX08-10 |
8 |
10 |
|
KQ2TX10-12 |
10 |
12 |
3.3 KQ2TY Reducing Cross Fitting (Tipe 2)
|
Model |
Port ΦD ① (mm) |
Port ΦD ② (mm) |
|
KQ2TY06-08 |
6 |
8 |
|
KQ2TY08-10 |
8 |
10 |
|
KQ2TY10-12 |
10 |
12 |
|
Item |
Paramèter |
|
Tubing Kompatibel |
Tabung PU, tabung pneumatik nilon PA |
|
Rentang Tekanan Kerja |
-100kPa (vakum) ~ 1.0MPa (tekanan positif) |
|
Suhu operasi |
0 ℃ ~ 60 ℃ |
|
Metode Sambungan |
push-in siji-tutul; Pencet ring release kanggo nyopot pipa |
|
Materi Inti |
Badan PBT, cakar baja tahan karat, segel karet NBR |
• Cabang sumber udara lan pangalihan pipa kanggo peralatan produksi otomatis
• Distribusi sirkuit pneumatik kanggo lengen robot lan sistem cangkir nyedhot vakum
• Distribusi udara multi-cara kanggo puteran kontrol pneumatik silinder
• Sambungan pipa kompak lan konversi diameter kanggo sistem pneumatik presisi
• Tee Diameter Setara: Pilih KQ2Txx-00 kanggo pipa 3 arah kanthi diameter tabung sing konsisten
• Ngurangi Tee: Pilih KQ2T①-② kanggo pipelines karo diameteripun sisih padha lan diameteripun tengah beda
• Tee Utas: Pilih KQ2Txx-01S (imperial) / seri M (metrik) kanggo sambungan thread karo katup lan silinder
• 4-Way Cross Distribusi: Pilih seri KQ2TW/TX/TY kanggo skenario sing mbutuhake cabang pipa papat arah
