KQ2Z Series Cabang Universal lanang siku

SOLH KQ2Z multi-port manifold push-in fittings, SMC KQ2Z setara pneumatic splitter. Papat sub-jinis: 1-in-2, stackable KQ2ZF, 1-in-4 KQ2ZD lan 1-in-6 KQ2ZT. Badan PBT kanthi benang kuningan berlapis nikel, kompatibel karo tabung PU / PA kanggo sirkuit vakum & tekanan positif. Teknologi Richge nawakake saham sing stabil lan manufaktur sing dipercaya kanggo distribusi udara otomatis.

Kirim Pitakonan

Deskripsi Produk

KQ2Z Series Multi-Port Manifold Push-in Fittings | SMC KQ2Z Setara Pneumatic Splitters

Brand: SOLH dening Richge Technology | KQ2Z Multi-outlet Pneumatic Manifold One-Touch Fittings

1. Ringkesan Produk

Seri KQ2Z kalebu kulawarga pas siji-tutul pneumatik SOLH KQ2. Iki minangka fitting manifold multi-cabang lanang, sing nampilake inlet udara tunggal lan pirang-pirang outlet tabung simultan. Desain push-to-connect kanggo selipan & penghapusan tabung tanpa alat, digunakake kanggo distribusi udara terpusat ing sistem pneumatik. Ana papat submodel:

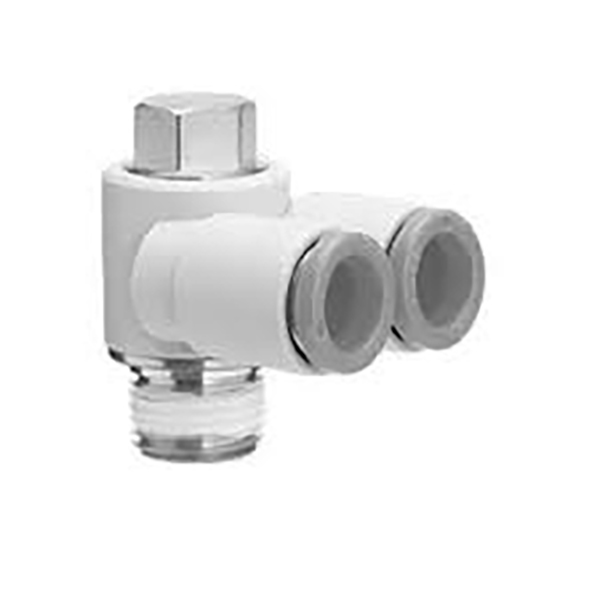

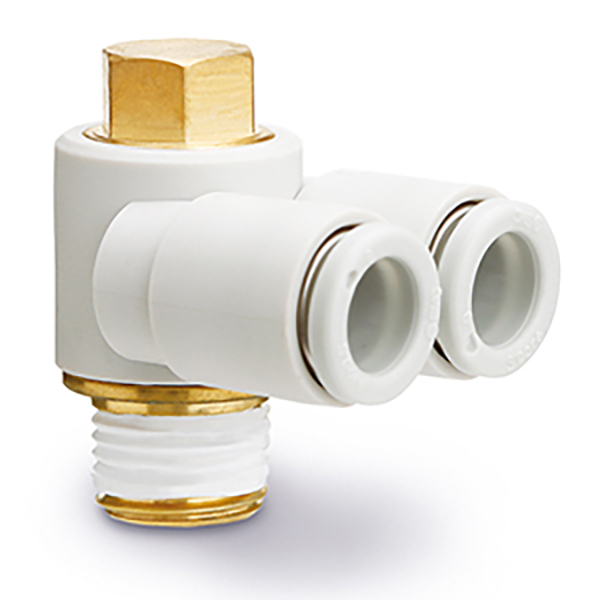

KQ2Z: 1-in 2-metu dual port, soyo tambah hex external

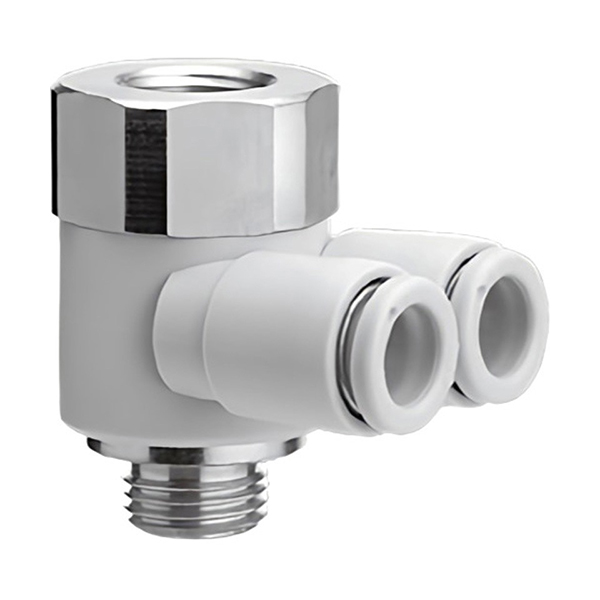

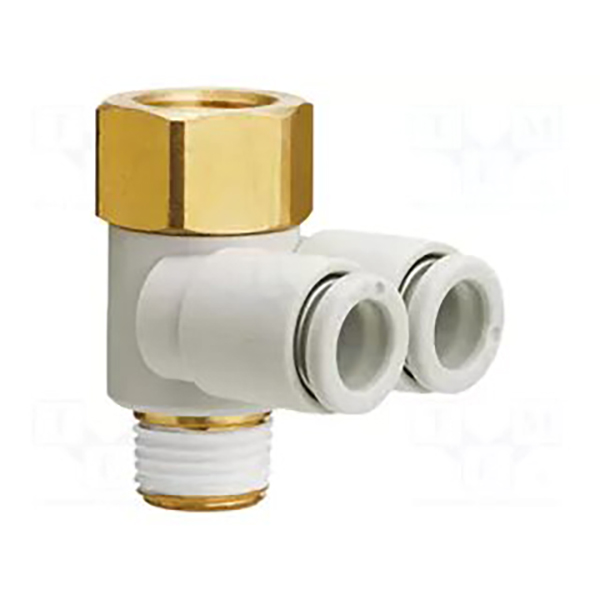

KQ2ZF: 1-in 2-out stackable manifold, Rc thread wadon ndhuwur kanggo cascading manifold ekstra

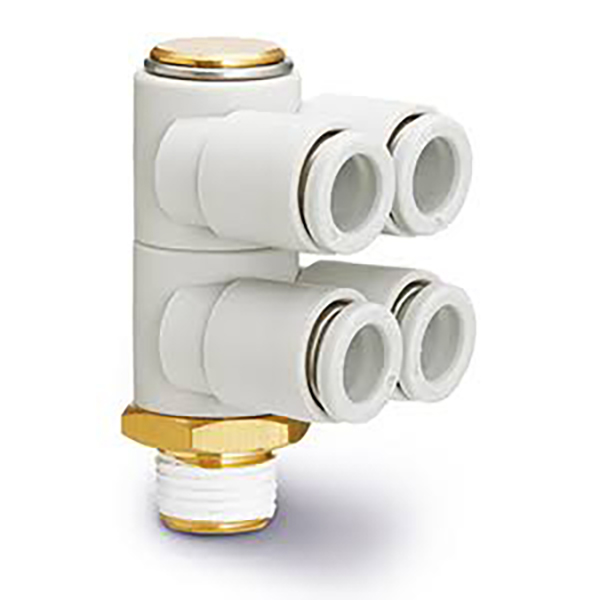

KQ2ZD: 1-ing 4-metu papat-cara cabang manifold

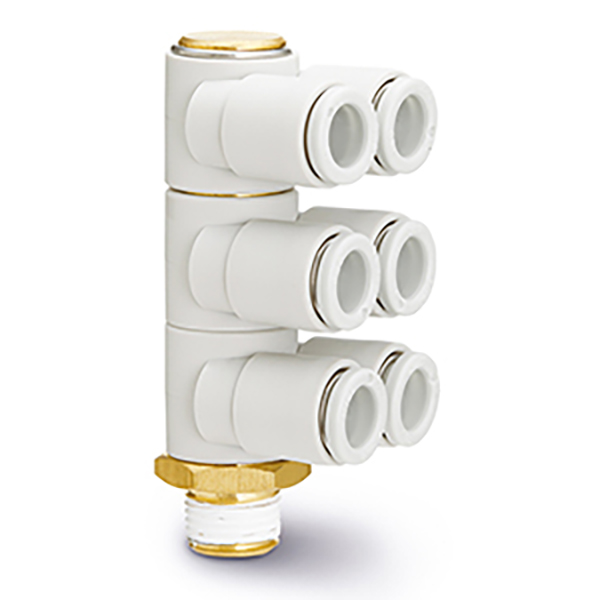

KQ2ZT: 1-in 6-metu enem-cara cabang manifold

Kaluwihan inti: Desain manifold kompak kanggo ngirit papan instalasi. Badan PBT kanthi benang kuningan berlapis nikel. Kompatibel karo tabung pneumatik PU / PA, bisa digunakake kanggo tekanan positif lan sirkuit vakum. Panggantos langsung gulung kanggo fitting SMC KQ2Z asli.

2. Katrangan Kode Model

Format: KQ2Z □□ - □□S

KQ2Z: Kode seri kanggo fitting manifold cabang multi-port
□□: Diameter njaba tabung ΦD (04=4mm,06=6mm,08=8mm,10=10mm,12=12mm)

Sufiks:

01S02S/03S/04S: Utas lancip lanang Imperial R (1/8",1/4",3/8",1/2")
M5: Utas lanang metrik M5 × 0.8

KQ2ZF: Versi stackable, Utas lanang R ngisor + Utas wadon Rc ndhuwur. Multiple KQ2ZF bisa disambungake end-to-end kanggo nggedhekake jumlah stopkontak.

3. Daftar Model Lengkap

3.1 KQ2Z (1-in 2-metu, Gunung Hex Eksternal)

Model	Utas lanang R	Tabung ΦD
KQ2Z04-01S	R1/8	4
KQ2Z04-M5	M5 × 0.8	4
KQ2Z06-01S	R1/8	6
KQ2Z06-02S	R1/4	6
KQ2Z06-03S	R3/8	6
KQ2Z08-01S	R1/8	8
KQ2Z08-02S	R1/4	8
KQ2Z08-03S	R3/8	8
KQ2Z10-02S	R1/4	10
KQ2Z10-03S	R3/8	10
KQ2Z12-03S	R3/8	12
KQ2Z12-04S	R1/2	12

3.2 KQ2ZF (Tipe Stackable 1-in 2-out, R + Rc Thread)

Model	R/Rc Utas	Tabung ΦD
KQ2ZF04-M5	M5 × 0.8	4
KQ2ZF04-01S	R1/8	4
KQ2ZF06-01S	R1/8	6
KQ2ZF06-02S	R1/4	6
KQ2ZF08-01S	R1/8	8
KQ2ZF08-02S	R1/4	8
KQ2ZF10-02S	R1/4	10
KQ2ZF10-03S	R3/8	10
KQ2ZF12-03S	R3/8	12
KQ2ZF12-04S	R1/2	12

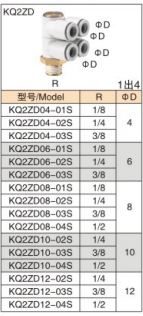

3.3 KQ2ZD (1-in 4-metu)

Model	Utas lanang R	Tabung ΦD
KQ2ZD04-01S	R1/8	4
KQ2ZD04-02S	R1/4	4
KQ2ZD04-03S	R3/8	4
KQ2ZD06-01S	R1/8	6
KQ2ZD06-02S	R1/4	6
KQ2ZD06-03S	R3/8	6
KQ2ZD08-01S	R1/8	8
KQ2ZD08-02S	R1/4	8
KQ2ZD08-03S	R3/8	8
KQ2ZD08-04S	R1/2	8
KQ2ZD10-02S	R1/4	10
KQ2ZD10-03S	R3/8	10
KQ2ZD10-04S	R1/2	10
KQ2ZD12-02S	R1/4	12
KQ2ZD12-03S	R3/8	12
KQ2ZD12-04S	R1/2	12

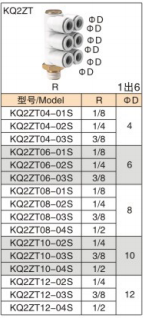

3.4 KQ2ZT (1-in 6-metu)

Model	Utas lanang R	Tabung ΦD
KQ2ZT04-01S	R1/8	4
KQ2ZT04-02S	R1/4	4
KQ2ZT04-03S	R3/8	4
KQ2ZT06-01S	R1/8	6
KQ2ZT06-02S	R1/4	6
KQ2ZT06-03S	R3/8	6
KQ2ZT08-01S	R1/8	8
KQ2ZT08-02S	R1/4	8
KQ2ZT08-03S	R3/8	8
KQ2ZT08-04S	R1/2	8
KQ2ZT10-02S	R1/4	10
KQ2ZT10-03S	R3/8	10
KQ2ZT10-04S	R1/2	10
KQ2ZT12-02S	R1/4	12
KQ2ZT12-03S	R3/8	12
KQ2ZT12-04S	R1/2	12

4. Spesifikasi Material & Teknis

Item	Paramèter
Bahan Badan	PBT engineering plastik, kekuatan dhuwur & resistance impact
Komponen Utas	Kuningan berlapis nikel, anti karat & tahan korosi
Ring Segel	NBR karet nitril
Tubing Kompatibel	Tabung PU, tabung pneumatik nilon PA
Tekanan Kerja	0 ~ 1.0MPa, ditrapake kanggo tekanan negatif vakum
Suhu operasi	-20 ℃ ~ +60 ℃
Metode Sambungan	Push-in pas; ring release penet kanggo masang / mbusak tubing

5. Skenario Aplikasi

• Mesin otomatisasi, susunan cangkir nyedhot robot: distribusi multi-jalur sumber udara tunggal, ngganti blok manifold tradisional lan nyimpen jejak instalasi

• Pasokan udara sing disinkronake kanggo pirang-pirang silinder, pipa terpusat ing sekitar pulau katup kompak

• KQ2ZF bisa ditumpuk ing seri kanggo nggedhekake jumlah stopkontak sing dikarepake, perakitan manifold fleksibel

• Impor substitusi, drop-in panggantos kanggo SMC KQ2Z seri fittings manifold

6. Cathetan panginstalan

• Cut tabung mburi vertikal warata, kanthi lebokake tabung menyang ngisor pas kanggo sealing dipercaya.

• Lebokake jumlah cilik saka tape PTFE ing Utas lanang, aplikasi Moderate tightening torsi supaya awak plastik retak.

• Aman tabung: penet ring release putih lan tarik tabung metu bebarengan.

• Kanggo aplikasi KQ2ZF cascaded, njamin thread sealing. Aja ngluwihi meksa dirating sawise multi-tataran numpuk.
